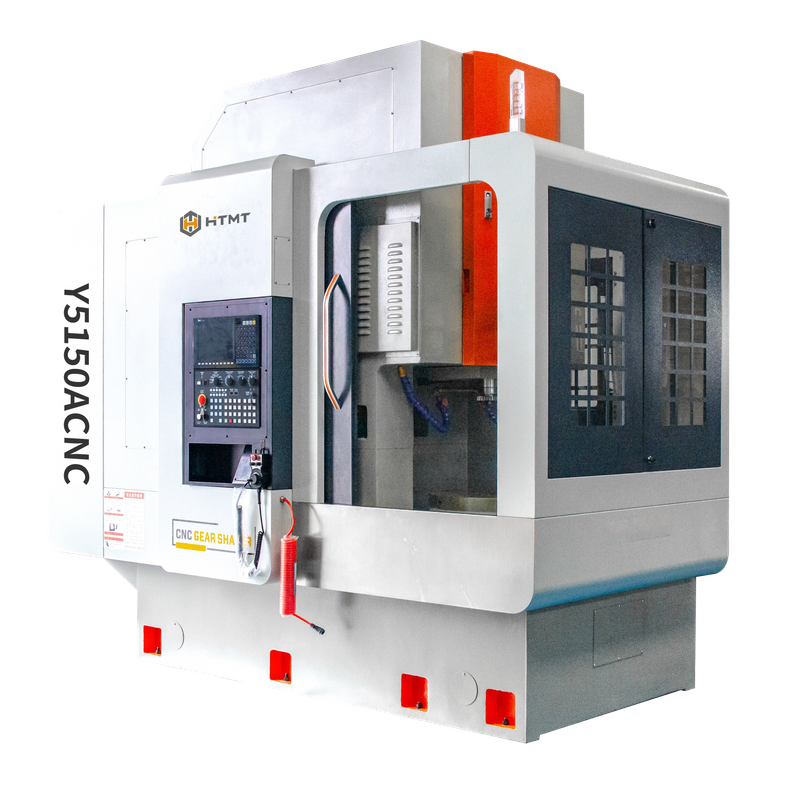

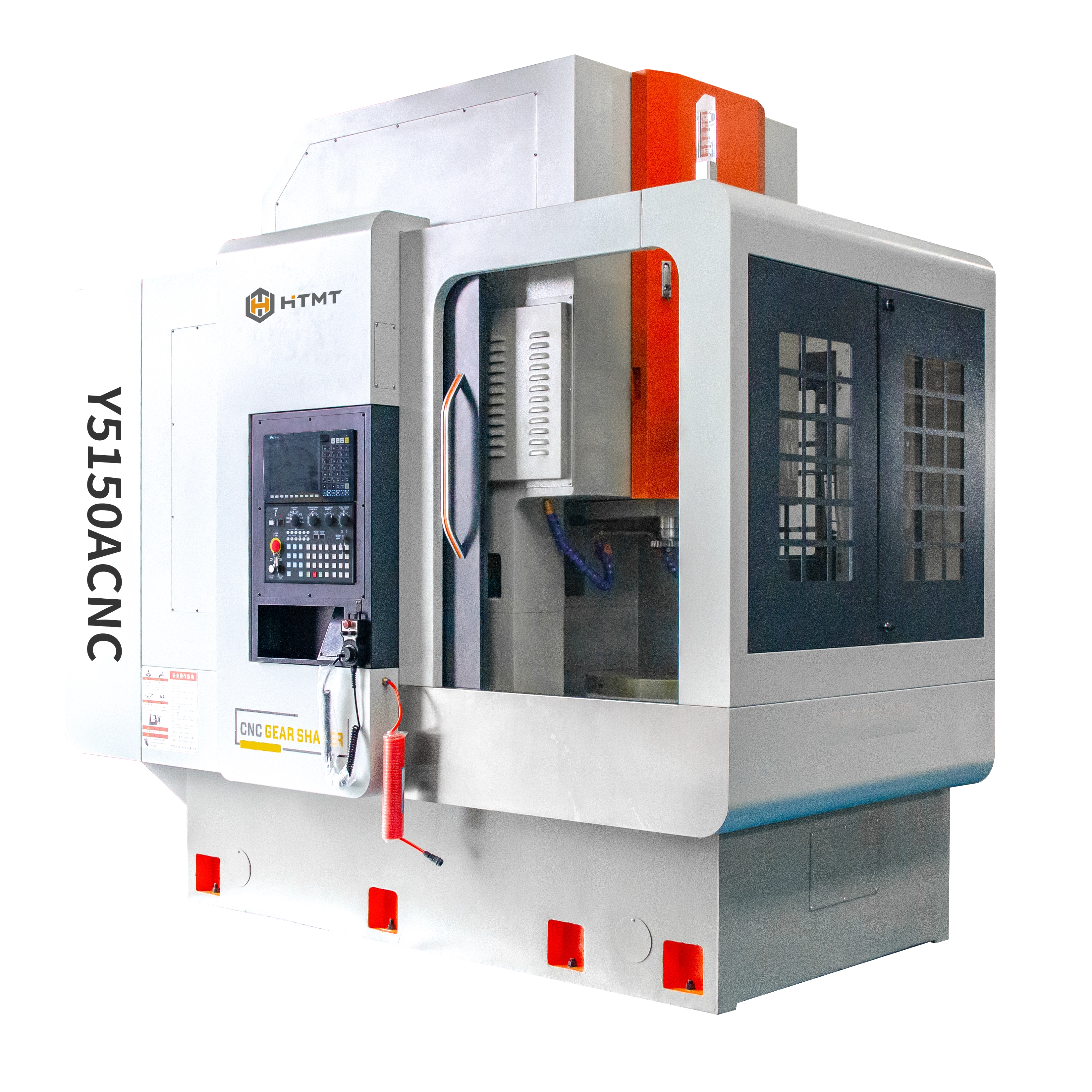

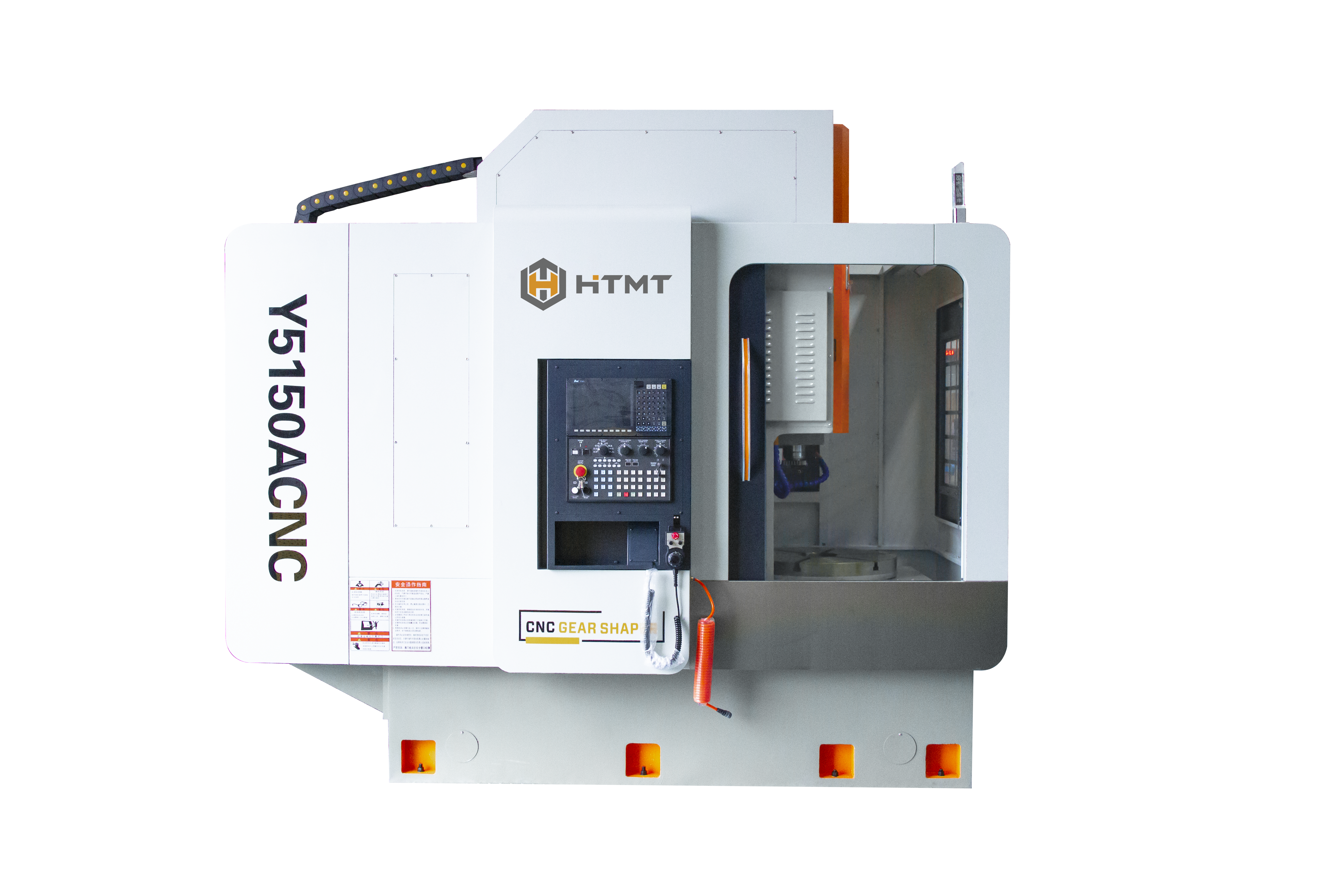

Y5150A Gear Shaper Machine

The Y5150A CNC gear shaping machine can be used for rough and finish machining of internal and external cylindrical gears, double gears and multi-link gears. This machine is a standardized product of our company and is now widely used in various types of disk gears, shake gears, etc. It is particularly suitable for large-scale production in the manufacturing industries of construction machinery, mining machinery, automobiles, agricultural machinery and aviation. It can also be used for single-piece or small-batch production in manufacturing. If special attachments are installed on the machine, it can be used to process helical gears, racks, sectors, cams, etc.

Availability:

Quantity:



Inquire Add to Basket

Model:
Y5150A CNC
Brand:
HantaiJialink

Product Description

PROJECT	UNIT	PARAMETERS
Maximum external tooth diameter of the workpiece	mm	500
Maximum internal tooth diameter of the workpiece	mm	600
Maximum modulus	mm	10
Maximum tooth width	mm	140
Maximum stroke of the tool	mm	160
Maximum stroke count of the main shaft	Str/max	40-400
Spindle tape hole for gear shaping cutter		MT5
Gear shaping cutter installation journal diameter	mm	31.743
Diameter of work surface	mm	Φ700
Work surface hole diameter	mm	Φ140
Gear shaping cutter stroke position adjustment	mm	50
Distance from tool mounting surface to workbench	mm	300-510
Gear shaping cutter (Φ125) Circumferential feed	mm	0.02-0.9
Distance from the axis of the gear shaping cutter to the axis of the worktable	mm	0-400
Y/C/B axis servo motor torque	NM	15/10/10
Spindle servo motor	Kw	15
Net weight of machine tool	KG	10000

Download parameters

Y5150ACNC.pdf

CNC gear plug machine CNC Gear Shaping Machine Gear plug machine Gear machining machine tool Gear machining Special gear machine tool External tooth processing machine tool Internal tooth processing machine tool
