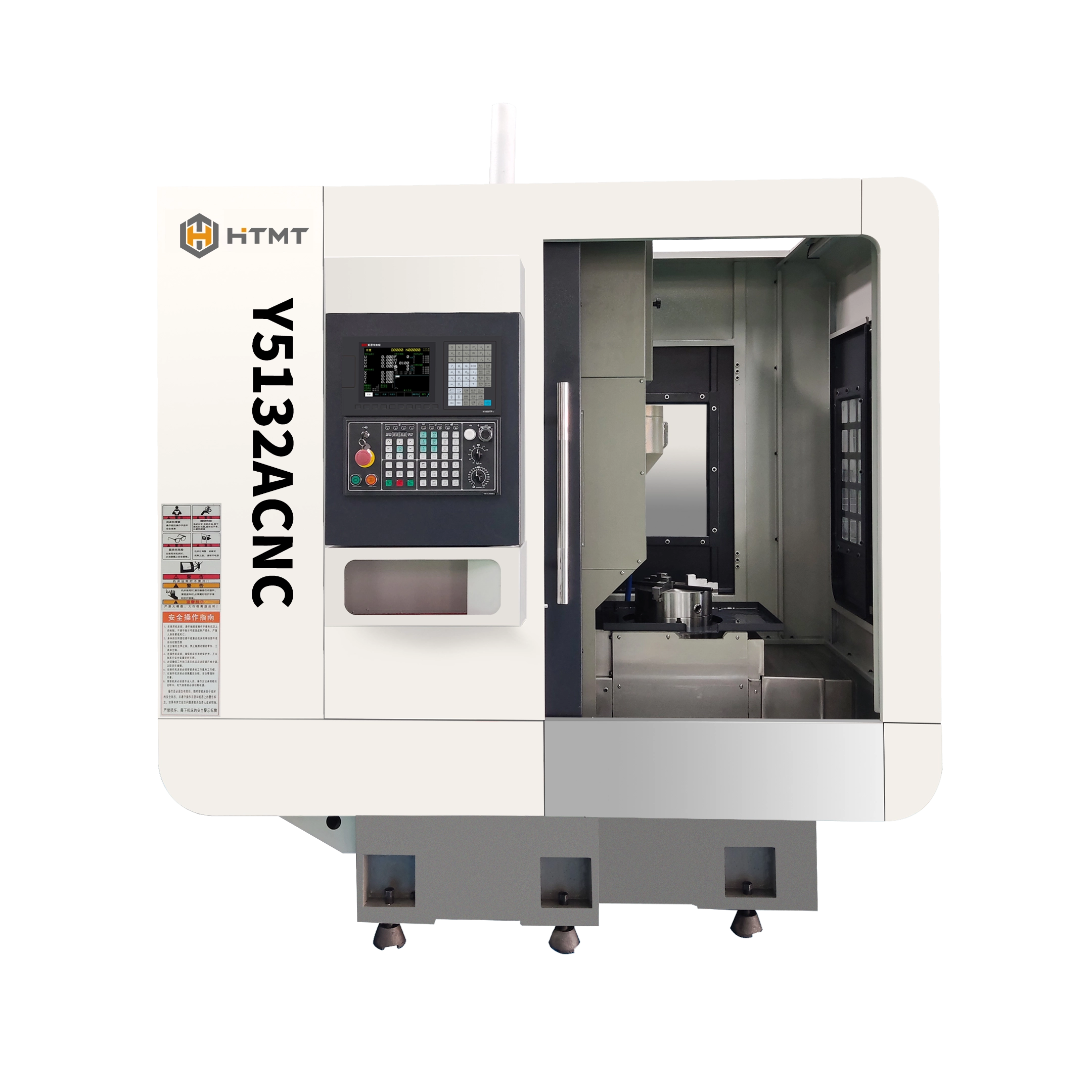

Y5132A Gear Shaper Machine

The Y5132A CNC gear shaper machine can be used for rough and finish machining of internal and external cylindrical gears, double gears and multi-link gears. This machine is a standardized product of our company and is now widely used in various types of disk gears, shake gears, etc. It is particularly suitable for large-scale production in the manufacturing industries of construction machinery, mining machinery, automobiles, agricultural machinery and aviation. It can also be used for single-piece or small-batch production in manufacturing. If special attachments are installed on the machine, it can be used to process helical gears, racks, sectors, cams, etc.

Availability:

Quantity:



Inquire Add to Basket

Model:
Y5132A CNC
Brand:
HantaiJialink

Product Description

PROJECT	UNIT	PARAMETERS
Maximum external tooth diameter of the workpiece	mm	320
Maximum internal tooth diameter of the workpiece	mm	220+D
Maximum modulus	mm	6
Maximum tooth width	mm	80
Maximum stroke of the tool	mm	90
Maximum stroke count of the main shaft	Str/max	500
Main shaft diameter	mm	80
Maximum cutting allowance of the tool	mm	0.38
Diameter of the workbench surface	mm	320
Tool installation diameter	mm	20/31.743/44.45mm Mohs2#/3#
The distance from the centerline of the cutting tool to the centerline of the worktable	mm	-115~270
The distance from the tool installation end face to the worktable surface	mm	100-215
Total power of the machine tool	Kw	11.5
Approximate weight	KG	4500/4700
Machine tool dimensions	mm	227016802150
Packaging size	mm	242017802350

Download parameters

Y5132ACNC.pdf
