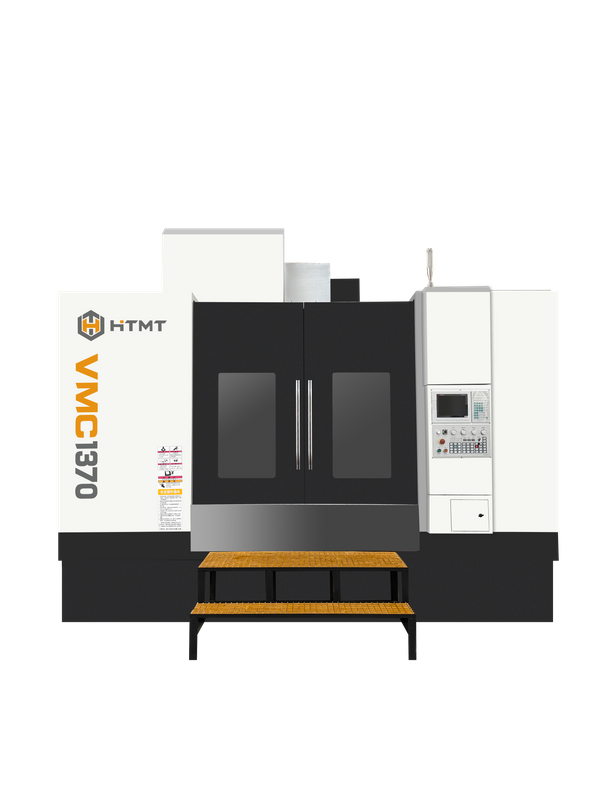

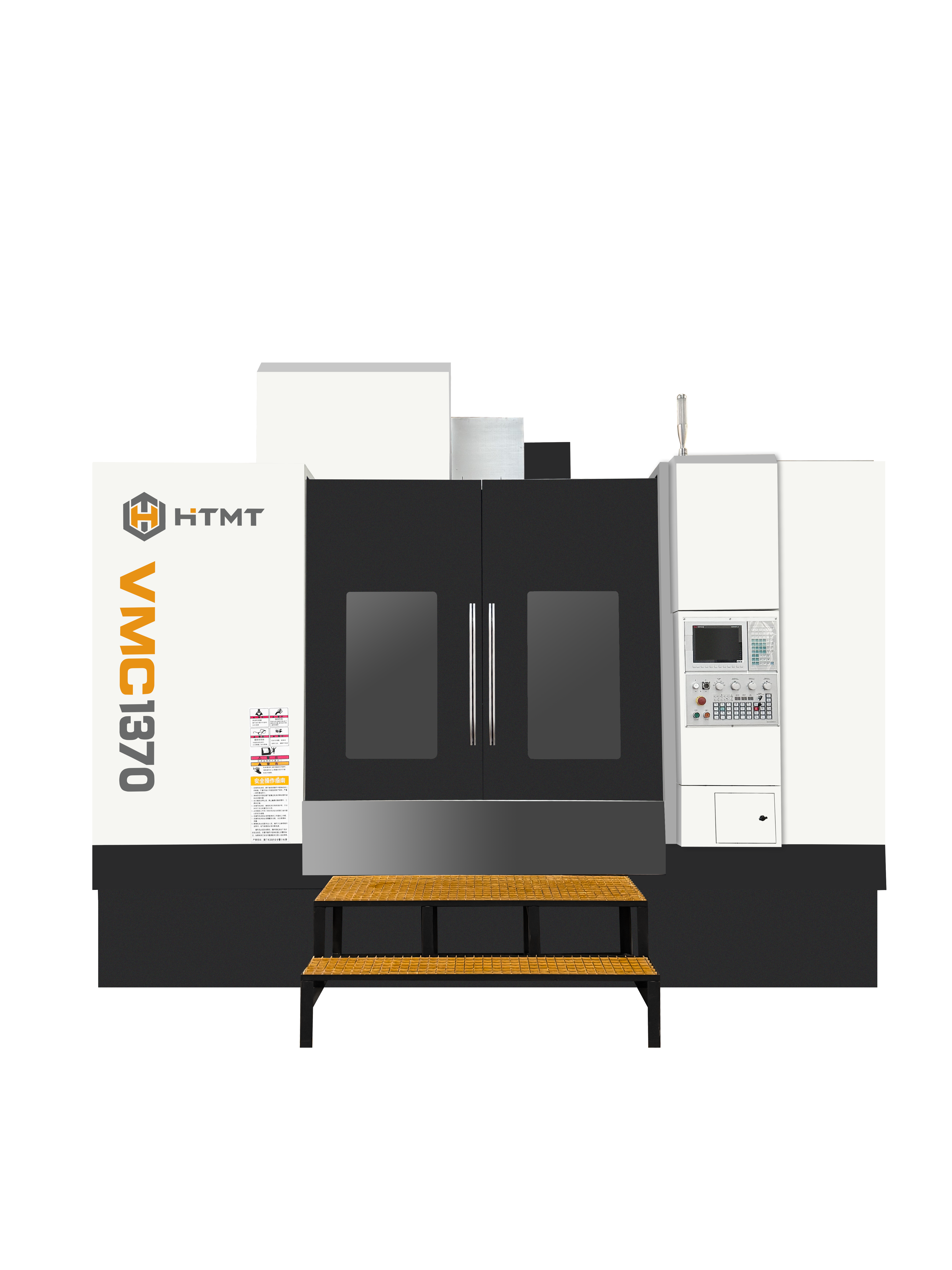

Vertical machining center VMC1370

Availability:

Quantity:



Inquire Add to Basket

Model:
VMC1370
Brand:
HantaiJialink

Product Description

PROJECT	UNIT	PARAMETERS
Workbench size	mm	1400X700
The travel of the X, Y and Z axes	mm	1300/700/700
Distance from spindle end to worktable	mm	70-870
Distance from spindle center to column	mm	785
Maximum load of workbench	KG	1000
Workbench T-slot	mm	5-18X122
X/Y/Z axis rapid feed	m/min	24/24/18
X/Y/Z rail width specifications	mm	RGH45/45*4/45
X/Y/Z screw specifications	mm	φ4512
Repeat positioning accuracy	mm	±0.003/300
Spindle specifications		BT40-8000
Disc tool magazine	pcs	24T
Controller system	/
X/Y/Z axis motor power	NM
Spindle motor power	Kw
Machine weight approx.	KG	9000
Machine size	mm	3700X2900X3300

Parameter download

VMC1370.pdf
