Shapers Machine
HantaiJialink

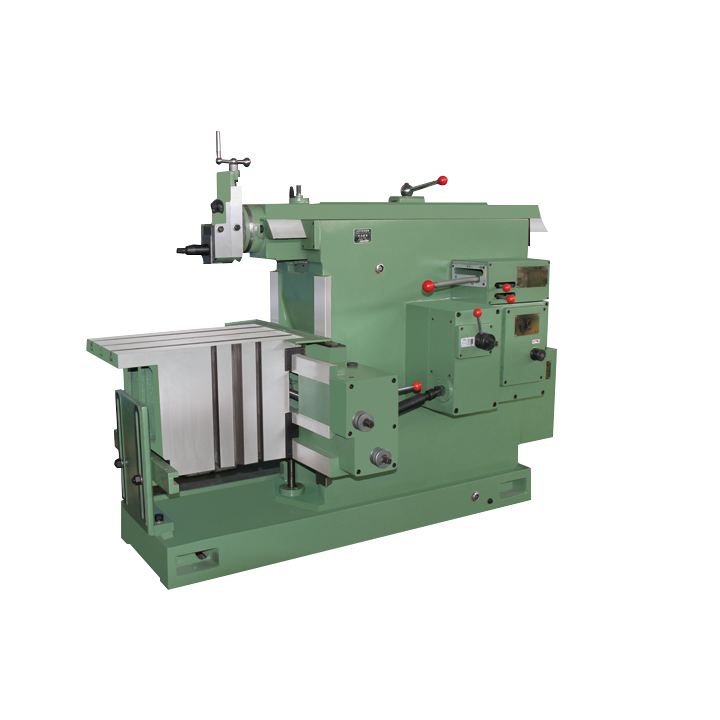

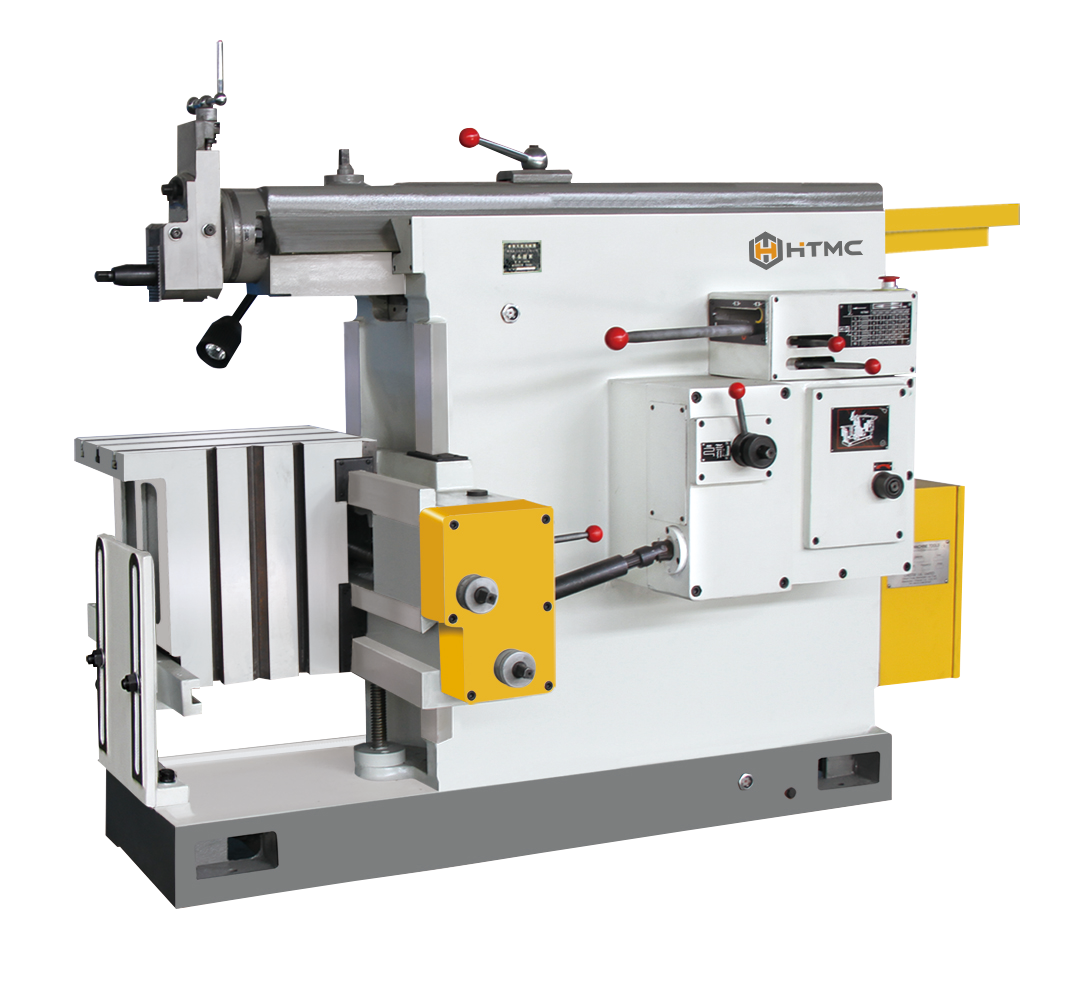

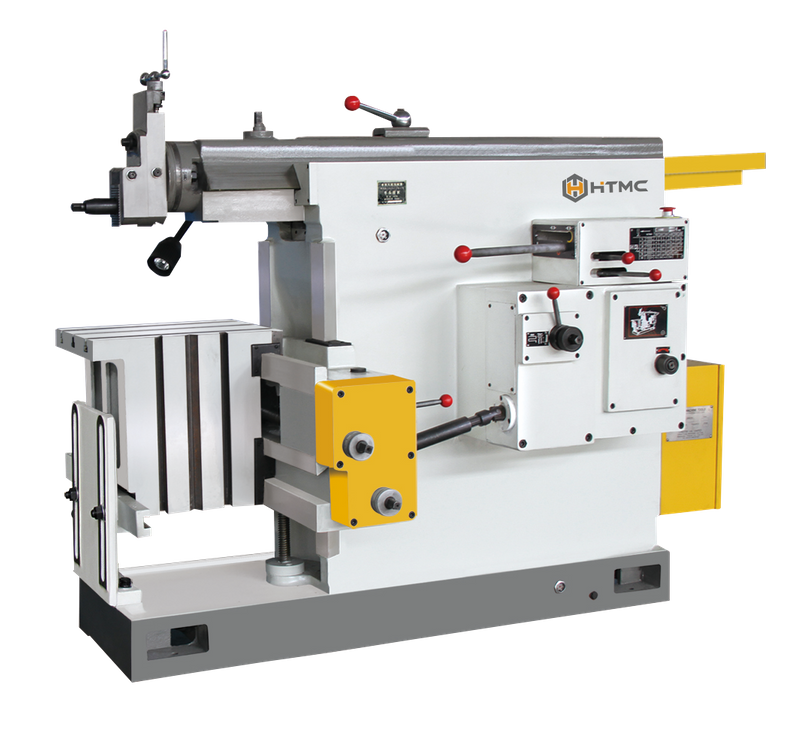

B635A/BC6050/6063/6066 Shaper Machine
Main parameters
PROJECT | B635A | BC6050/63/66 |
Maximum planning length | 350mm | 500/630/660mm |
Maximum distance from bottom of ramto countertop | 330mm | 385mm |
Transversre stroke | 400mm | 630mm |
Vertical stroke | 270mm | 360mm |
Head travel | 110mm | 120mm |
Ram reciprocation(per minute) | 32/50/80/125 | 14/20/28/40/56/80 |
Main motor power | 1.5Kw | 3Kw |
Maximum shank size(width*thickness) | 20*30mm | 20*30mm |
Table central T-slot dimensions | 14mm | 18mm |
Turning angle | ±90°(There are no pliers) | ±60°Knife rest |
Table size | 350*300mm | 440*360mm |
630*400mm | ||
660*400mm | ||
Overall dimension | 1530*930*1370mm | 2375*1225*1480 |
Machine weight | 1100/1250KG | 1650/1760/1750/ |
Package weight | 1500*1000*1500mm | 2000*1300*1650 |
| BC6085 | BC60100 |
Maximum planning length | 850mm | 1000mm |
Maximum distance from bottom of ramto countertop | 400mm | 400mm |
Transversre stroke | 710mm | 800mm |
Vertical stroke | 360mm | 380/320mm |
Head travel | 160mm | 160mm |
Ram reciprocation(per minute) | 17/24/35/50/70/100 | 15/20/29/42/58/83 |
Main motor power | 5.5Kw | 7.5Kw |
Maximum shank size(width*thickness) | 25*40mm | 30*45mm |
Table central T-slot dimensions | 22mm | 22mm |
Turning angle | ±60°Knife rest | ±60°Knife rest |
Table size | 800*450mm | 1000*500mm |
Overall dimension | 5950*1325*1693mm | 3640*1575*1780 |
Machine weight | 2940*3090KG | 4870/5150/ |
Package weight | 2450*1500*1800mm | 3200*1800*2100mm |

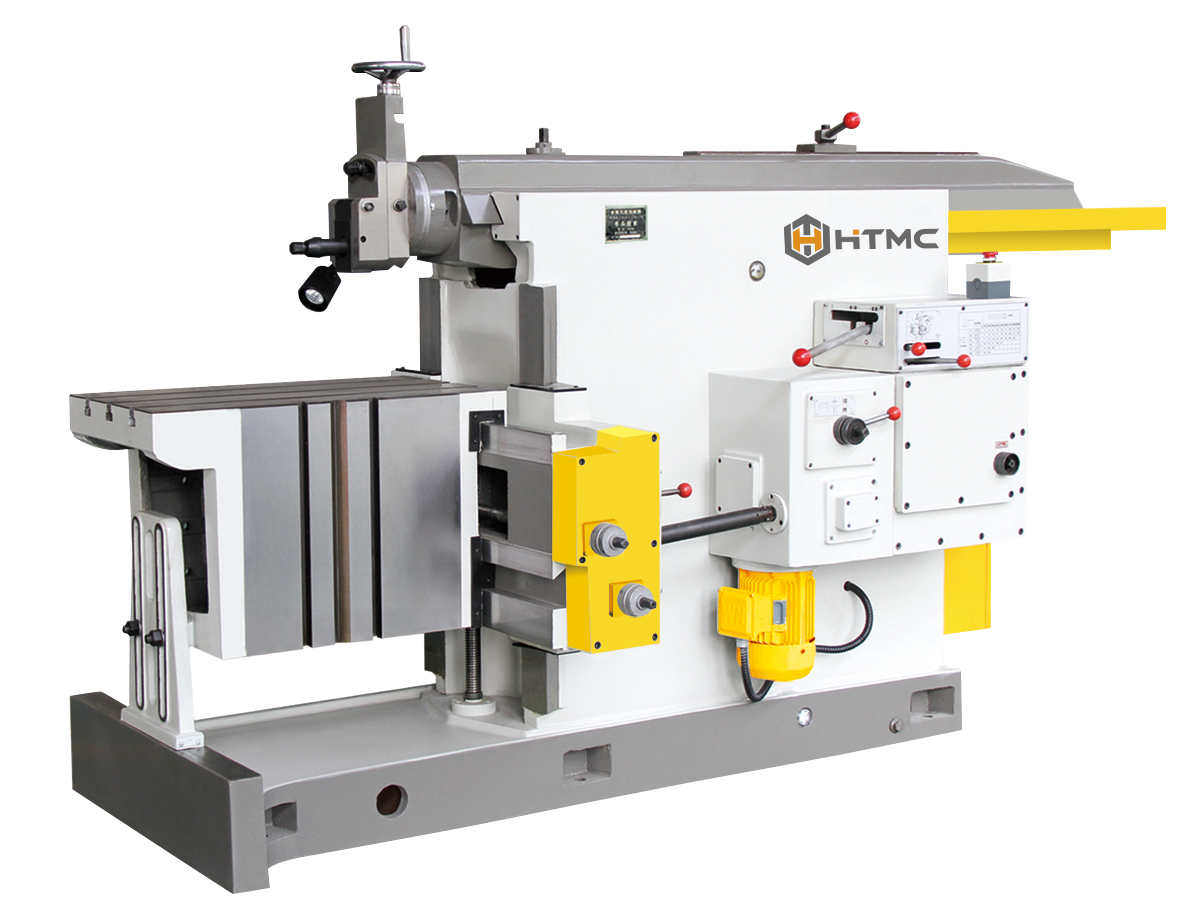

BC6085/BC60100 Shaper Machine
Main parameters
PROJECT | B635A | BC6050/63/66 |
Maximum planning length | 350mm | 500/630/660mm |
Maximum distance from bottom of ramto countertop | 330mm | 385mm |
Transversre stroke | 400mm | 630mm |
Vertical stroke | 270mm | 360mm |
Head travel | 110mm | 120mm |
Ram reciprocation(per minute) | 32/50/80/125 | 14/20/28/40/56/80 |
Main motor power | 1.5Kw | 3Kw |
Maximum shank size(width*thickness) | 20*30mm | 20*30mm |
Table central T-slot dimensions | 14mm | 18mm |
Turning angle | ±90°(There are no pliers) | ±60°Knife rest |
Table size | 350*300mm | 440*360mm |
630*400mm | ||
660*400mm | ||
Overall dimension | 1530*930*1370mm | 2375*1225*1480 |
Machine weight | 1100/1250KG | 1650/1760/1750/ |
Package weight | 1500*1000*1500mm | 2000*1300*1650 |
| BC6085 | BC60100 |
Maximum planning length | 850mm | 1000mm |
Maximum distance from bottom of ramto countertop | 400mm | 400mm |
Transversre stroke | 710mm | 800mm |
Vertical stroke | 360mm | 380/320mm |
Head travel | 160mm | 160mm |
Ram reciprocation(per minute) | 17/24/35/50/70/100 | 15/20/29/42/58/83 |
Main motor power | 5.5Kw | 7.5Kw |
Maximum shank size(width*thickness) | 25*40mm | 30*45mm |
Table central T-slot dimensions | 22mm | 22mm |
Turning angle | ±60°Knife rest | ±60°Knife rest |
Table size | 800*450mm | 1000*500mm |
Overall dimension | 5950*1325*1693mm | 3640*1575*1780 |
Machine weight | 2940*3090KG | 4870/5150/ |
Package weight | 2450*1500*1800mm | 3200*1800*2100mm |
