Precautions for CNC slotting machining of keyways

This article details the precautions for keyway machining with CNC slotting machines, covering the core operating points before, during and after machining. It provides professional solutions for common problems such as workpiece clamping, tool selection, parameter setting and precision control, helping enterprises avoid machining errors, improve production efficiency and reduce losses. As a professional CNC slotting machine manufacturer, Hantai Machinery (www.hantaimachinery.com) can provide high-precision CNC slotting machine equipment and customized keyway machining technical support. To get an exclusive machining plan or equipment quotation, please leave your contact information, and our technical team will contact you as soon as possible.

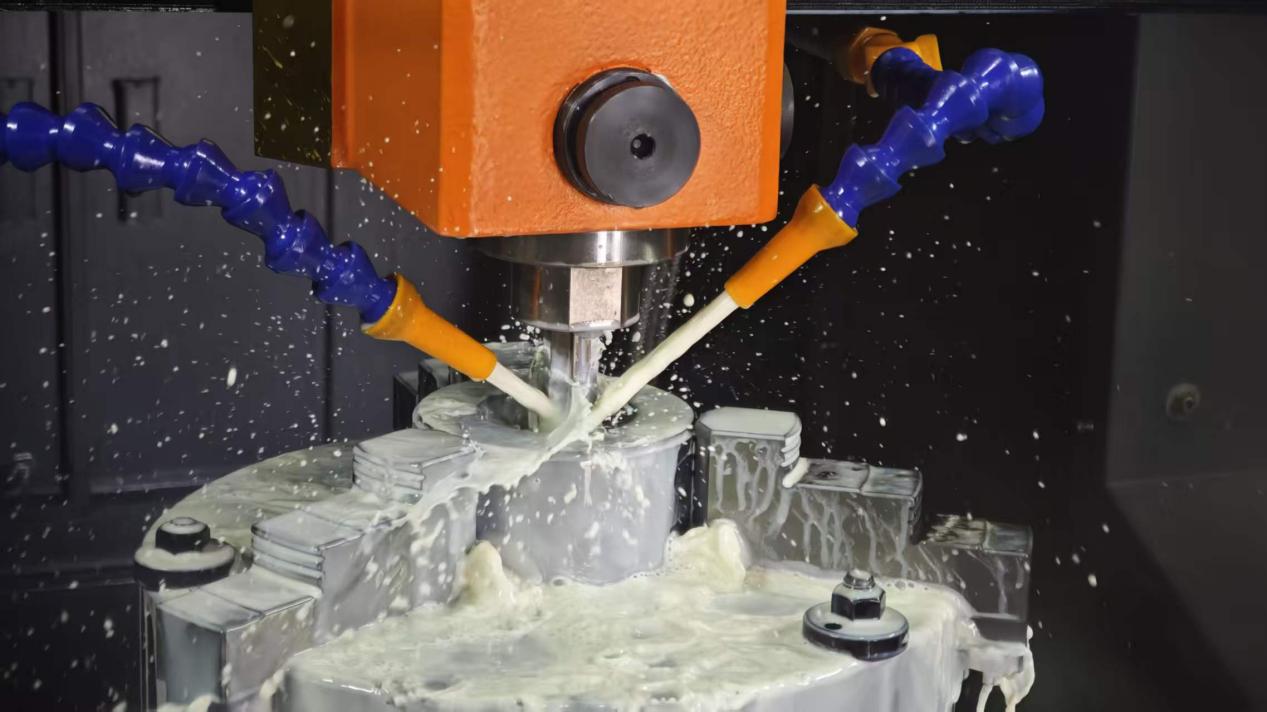

As a core connection structure of mechanical transmission components, keyways are widely used in the processing of gears, shafts, hubs and other workpieces. Their processing accuracy directly affects the transmission stability and service life of mechanical products. CNC slotting machines have become the core equipment for keyway machining due to their advantages of high precision, high efficiency and automation. Scientific and standardized operation is the key to ensuring the quality of keyway machining and reducing production costs. As a professional CNC slotting machine manufacturer, Hantai Machinery (www.hantaimachinery.com) has sorted out the precautions for the whole process of keyway machining with CNC slotting machines based on years of industry experience, helping enterprises avoid machining mistakes and improve production efficiency. For customized technical support, feel free to contact us.

I. Precautions Before Machining (Lay the Foundation for Machining and Avoid Source Errors)

Preparation work before machining is the premise to ensure the accuracy of keyway machining. Any negligence in details may lead to subsequent machining failure. Focus on the following 3 points:

1. Standard Workpiece Clamping: Before clamping, clean the oil, rust and burrs on the surface of the workpiece to ensure that the positioning surface of the workpiece is flat and clean; select appropriate clamping tools (such as vices, chucks) according to the size and shape of the workpiece. The clamping force should be moderate to prevent the workpiece from loosening and shifting, and also avoid workpiece deformation affecting the keyway size accuracy. It is recommended to use the special clamping tools supporting our Hantai CNC slotting machine, which have better adaptability and can further improve the machining stability (see tool details on the official website: www.hantaimachinery.com).

2. Tool Selection and Inspection: Select matching slotting tools (such as rectangular slotting tools, involute slotting tools) according to the size (width, depth) of the keyway and the workpiece material (steel, cast iron, copper, etc.), ensuring that the hardness of the tool material is higher than that of the workpiece material to avoid excessive tool wear; before machining, check whether the cutting edge of the tool is sharp and whether the tool is installed firmly. The tool extension length should be reasonable to prevent tool vibration during machining, resulting in rough keyway surface or dimensional deviation. For customized special keyway machining tools, you can contact our technical team to provide customized solutions according to your machining needs.

3. Equipment Inspection and Debugging: Before starting the CNC slotting machine, check whether the power supply, air source and lubrication system of the equipment are normal, and whether each operation button and indicator light are sensitive; debug the core parameters of the equipment such as spindle speed, feed speed and slotting depth, and set them reasonably according to the workpiece material and tool type (for example, when machining keyways of ordinary carbon steel, the spindle speed can be set to 80-120r/min, and the feed speed to 5-10mm/min). After debugging, conduct no-load trial operation to confirm that the equipment is normal before processing the workpiece. Hantai CNC slotting machine is equipped with an intelligent parameter adjustment system, which is easy to operate and can quickly complete parameter setting, reducing the difficulty of operation. For more information about the equipment, you can query on the official website: www.hantaimachinery.com.

II. Precautions During Machining (Control the Core Links and Ensure Machining Accuracy)

The machining process is a high-incidence stage of errors. It is necessary to pay real-time attention to the equipment operation status, tool wear and workpiece machining accuracy, and focus on the following 4 points:

1. Stable Parameter Control: It is strictly prohibited to randomly adjust core parameters such as spindle speed and feed speed during machining. If adjustment is needed, stop the equipment first, confirm the adjustment plan before operation; pay close attention to the load change of the equipment. If the load increases abnormally, it may be due to tool wear or workpiece jamming. Stop the machine immediately for inspection to avoid equipment damage or workpiece scrapping.

2. Tool Wear Monitoring: Pay attention to the tool wear during machining. If the tool edge is worn or chipped, stop the machine immediately to replace the tool to avoid affecting the keyway machining accuracy and surface quality; for batch machining, it is recommended to check the tool regularly and arrange the tool replacement cycle reasonably to reduce machining errors. Hantai CNC slotting machine can be equipped with a tool wear monitoring function to remind tool replacement in real time, improving machining efficiency and reducing losses.

3. Real-time Precision Detection: Conduct phased precision detection during machining. Use tools such as calipers and micrometers to measure the width, depth and symmetry of the keyway. If dimensional deviation is found, adjust the equipment parameters or tool position in time to avoid quality problems of batch workpieces; for high-precision keyway machining, it is recommended to match online detection equipment to realize real-time detection and real-time correction, ensuring that the machining accuracy meets the requirements (for high-precision CNC slotting machine models, visit the official website: www.hantaimachinery.com).

4. Safe Operation Specifications: Operators must wear protective equipment (such as protective glasses, gloves) and are strictly prohibited from touching the rotating tools and moving workpieces with their hands; it is strictly prohibited to open the equipment protective door during machining to avoid iron chips splashing and hurting people; if the equipment has abnormal noise, vibration and other conditions, stop the machine immediately, cut off the power supply, and contact professional personnel for maintenance. It is strictly prohibited to disassemble and repair the machine without permission.

III. Precautions After Machining (Improve the Follow-up Process and Improve Product Qualification Rate)

Machining is not the end. Reasonable follow-up treatment can further improve the keyway machining quality and reduce the rework rate. Focus on the following 3 points:

1. Comprehensive Precision Detection: After machining, conduct a comprehensive precision detection of the keyway, including dimensional accuracy (width, depth), geometric tolerance (symmetry, parallelism) and surface roughness, to ensure that it meets the requirements of the product drawings; for unqualified workpieces, timely analyze the causes of errors and take remedial measures (such as rework machining) to avoid waste.

2. Workpiece Cleaning and Rust Prevention: Clean the iron chips and cutting fluid on the surface of the workpiece, gently grind the burrs on the edge of the keyway with sandpaper to ensure that the surface of the workpiece is smooth; for workpieces that need to be stored for a long time, apply anti-rust oil to prevent the workpiece from rusting and affecting subsequent use.

3. Equipment Maintenance and Upkeep: After machining, turn off the power supply and air source of the CNC slotting machine, and clean the iron chips and cutting fluid on the equipment workbench; check the lubrication system of the equipment, add lubricating oil in time to ensure good lubrication of the equipment components; conduct comprehensive maintenance of the equipment regularly, investigate equipment hidden dangers, and extend the service life of the equipment. Hantai Machinery provides perfect after-sales maintenance services for equipment. For equipment maintenance manuals or after-sales support, please contact us.

IV. Common Machining Errors and Solutions (Targeted Solutions to Pain Points and Improve Machining Efficiency)

In the process of keyway machining with CNC slotting machines, some errors are inevitable. The following are the 4 most common errors and targeted solutions to help you quickly avoid problems:

1. Keyway Dimensional Deviation (Too Large or Too Small): The main reasons are tool wear, unreasonable parameter setting or workpiece clamping displacement; Solution: Replace worn tools in time, re-debug equipment parameters, check the workpiece clamping situation, adjust the clamping force, and ensure accurate workpiece positioning.

2. Rough Keyway Surface: The main reasons are dull tool edge, too fast feed speed or insufficient cutting fluid; Solution: Grind or replace the tool, reduce the feed speed, increase the supply of cutting fluid, and ensure sufficient cooling of the tool during cutting.

3. Unqualified Keyway Symmetry: The main reasons are workpiece positioning deviation and inclined tool installation; Solution: Reposition the workpiece, adjust the clamping position, correct the tool installation angle, and ensure that the tool is perpendicular to the workpiece positioning surface.

4. Uneven Keyway Depth: The main reasons are equipment spindle runout and unstable feed speed; Solution: Check the equipment spindle accuracy, perform spindle calibration, debug the feed system to ensure stable feed speed, and contact the equipment manufacturer for professional maintenance if necessary.

The above are the precautions for the whole process of keyway machining with CNC slotting machines. Mastering these skills can effectively improve the keyway machining accuracy and production efficiency, and reduce production costs. As a professional CNC slotting machine manufacturer, Hantai Machinery (www.hantaimachinery.com) has many years of experience in foreign trade export. The high-precision CNC slotting machines produced can adapt to various keyway machining needs, and support customized equipment R&D and technical support.

If you encounter difficulties in the keyway machining process, or need to purchase cost-effective CNC slotting machines, please leave your name, email and machining needs. Our technical team will provide you with an exclusive machining plan and equipment quotation as soon as possible. You can also get the "CNC Slotting Machine Keyway Machining Operation Manual" for free, helping you quickly solve machining pain points and improve production efficiency!
