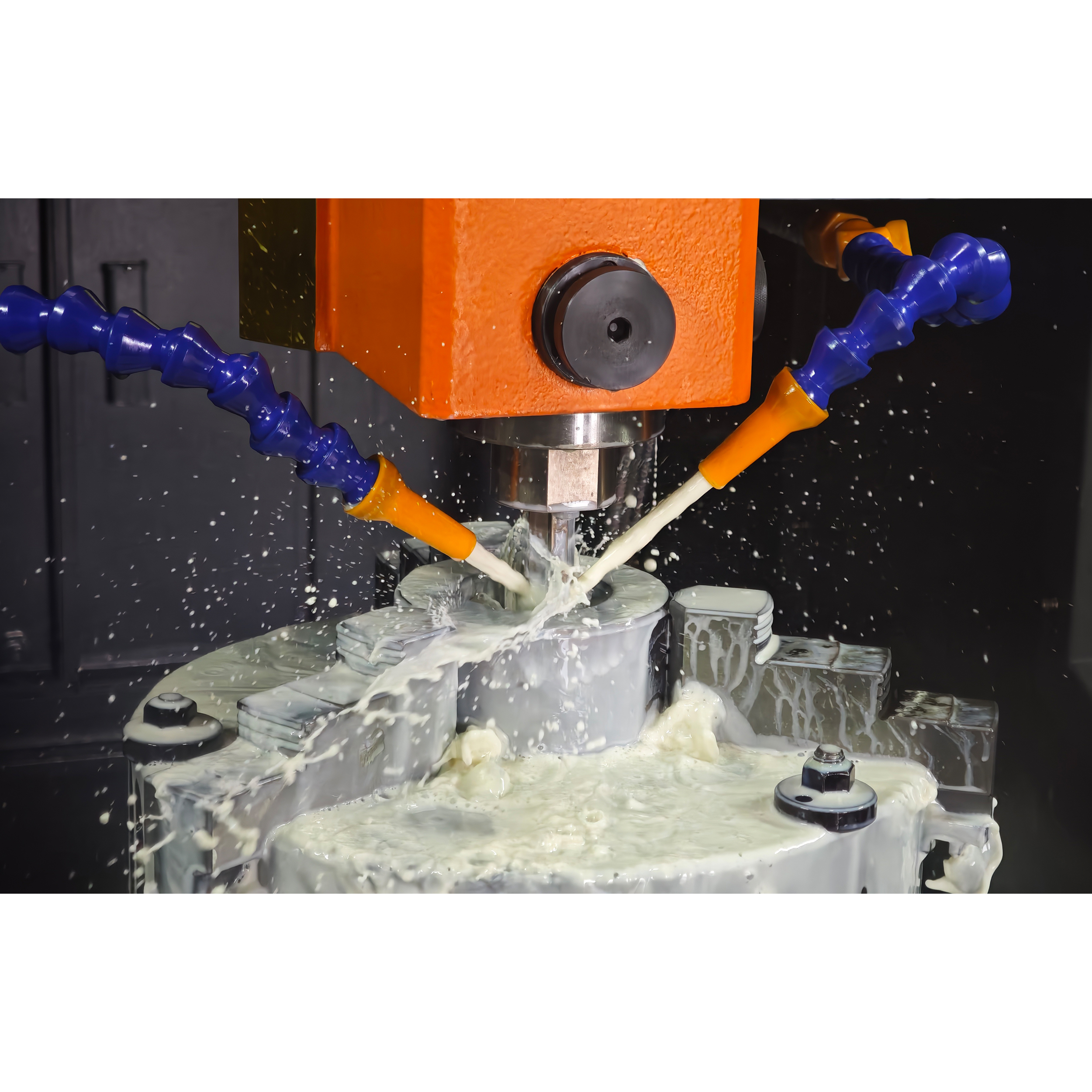

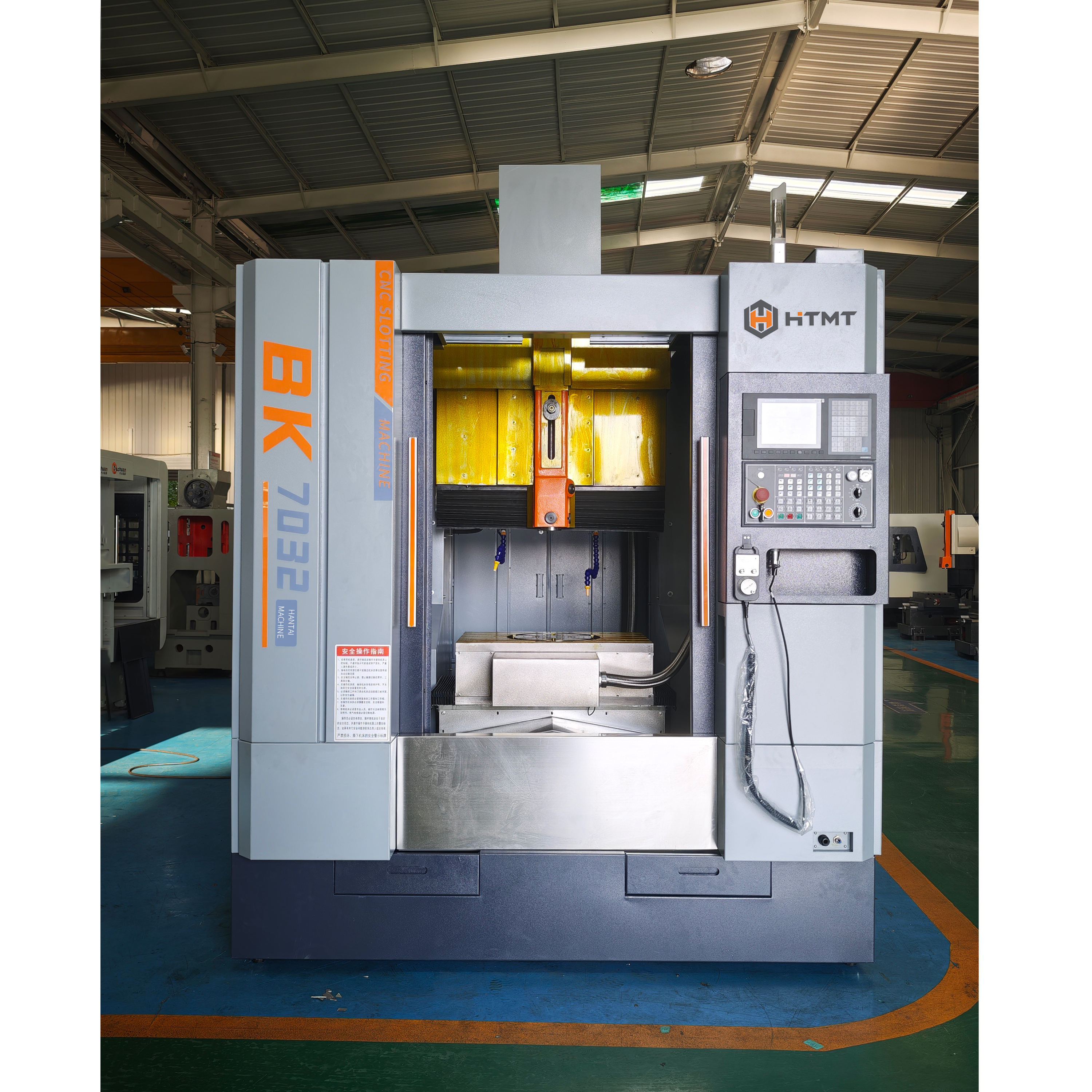

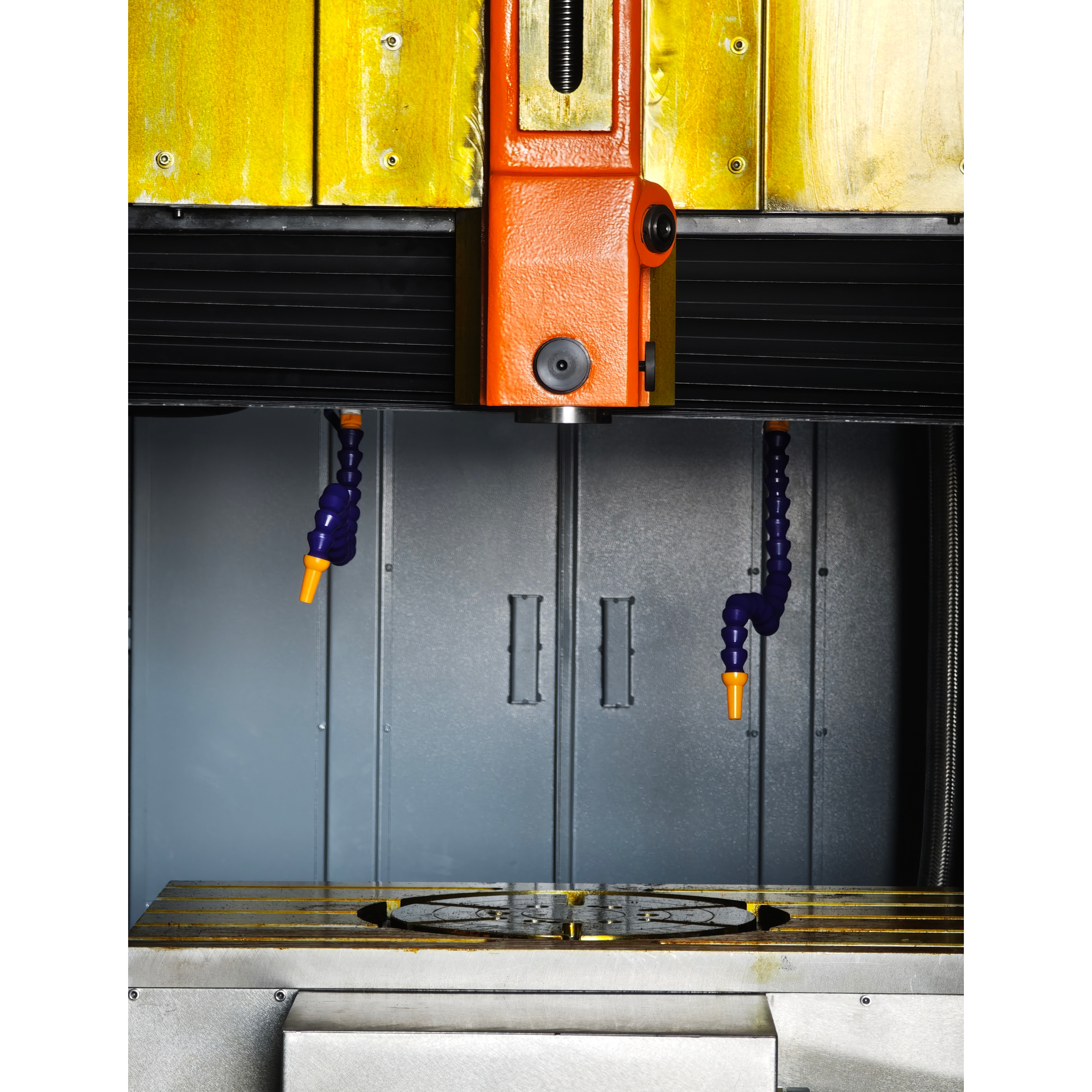

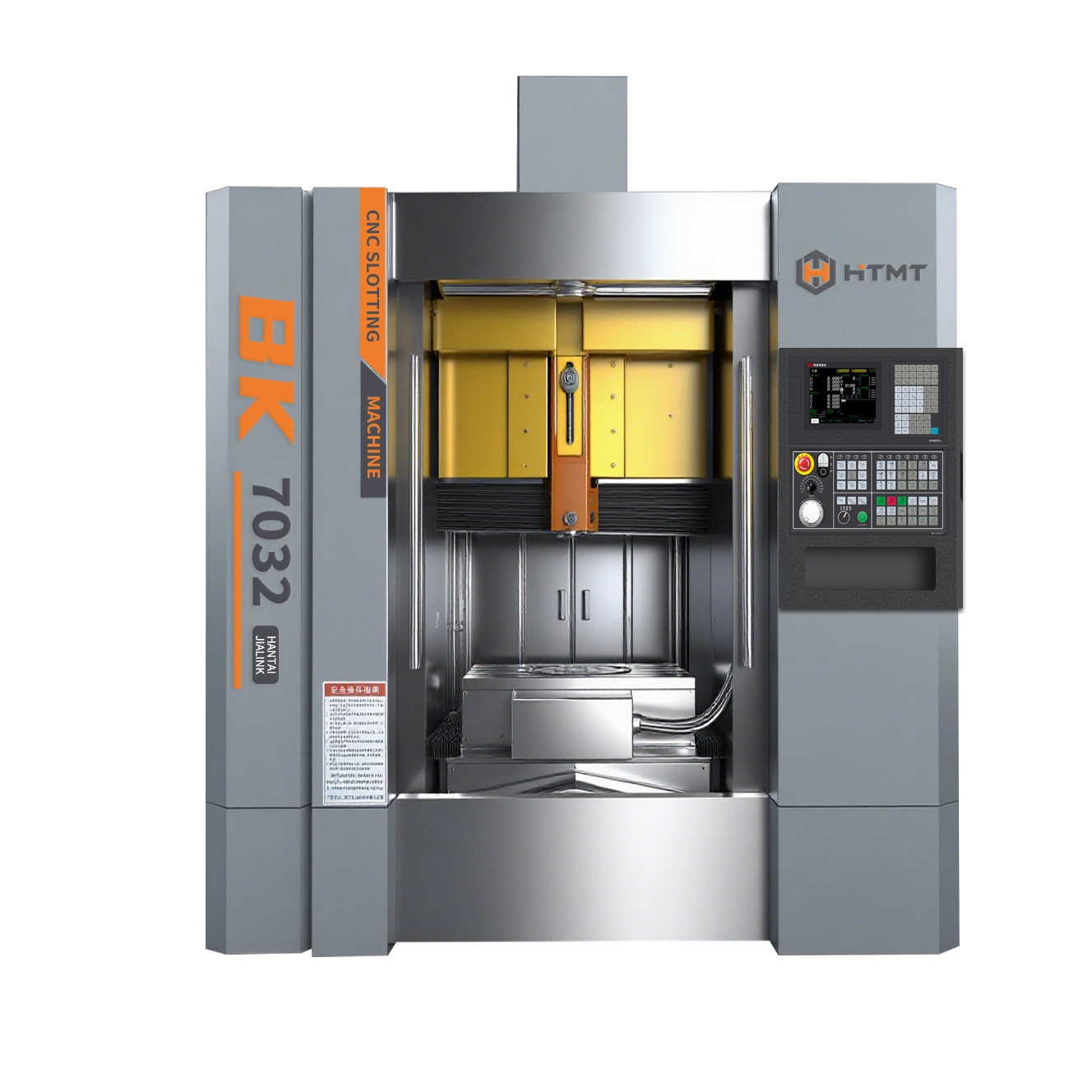

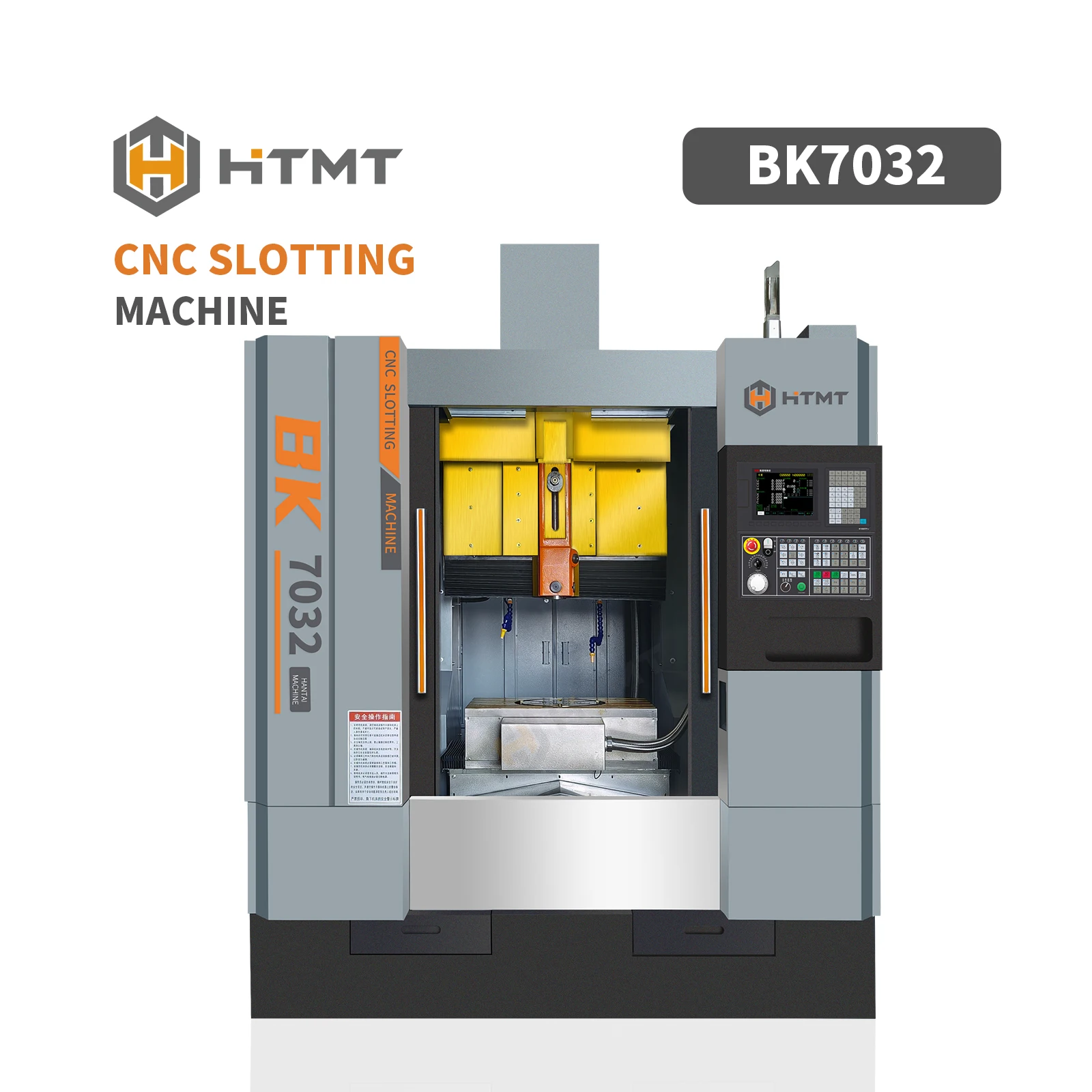

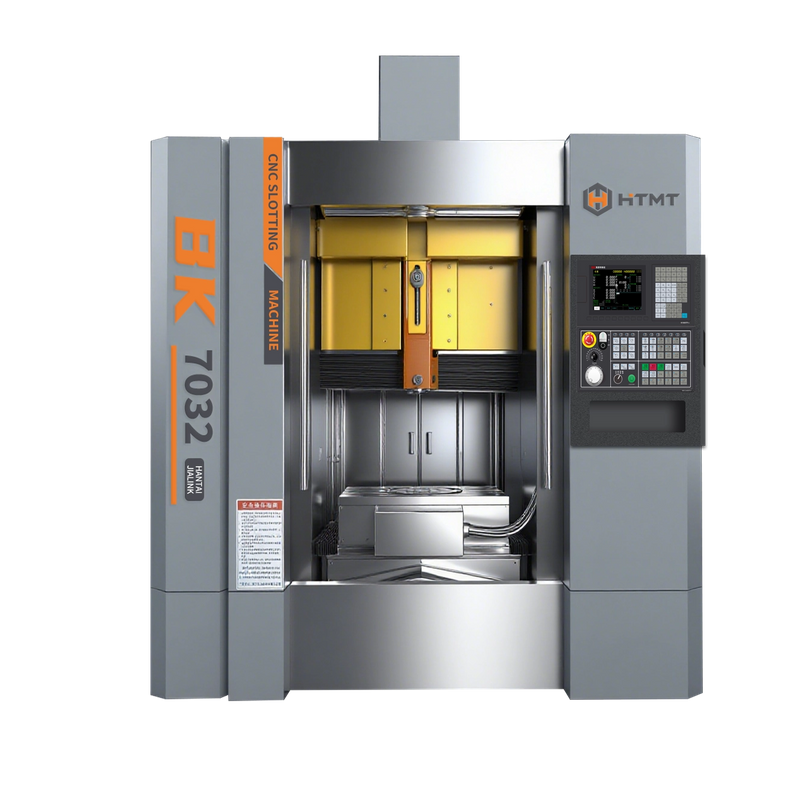

BK7032 Slotting Machine

The BK7032 high-speed CNC slotting machine is a CNC cutting machine integrating multiple processing functions. With its excellent stability, high precision and strong cutting capacity, it occupies an important position in many industries such as machine tool manufacturing, automobile production, mechanical and electrical, and aerospace, and has become an ideal equipment for processing keyways, teeth, slotting planes and formed surfaces of various materials.
Availability:
Quantity:
Inquire Add to Basket

  • BK7032

  • HantaiJialink

Product Description

BK7032 汉泰嘉联重型立式数控开槽机，带电机，用于金属铣削和齿轮切削，价格有竞争力

BK7032 汉泰嘉联重型立式数控开槽机，带电机，用于金属铣削和齿轮切削，价格有竞争力

Machine tool type 单位 BK7032
Maximum cutting length mm 320
Maximum installation size of workpiece mm 300
Maximum weight of workpiece KG 350
Maximum cutting width mm

0.5-20
Number of times per minute for the bolster n/min 10-210

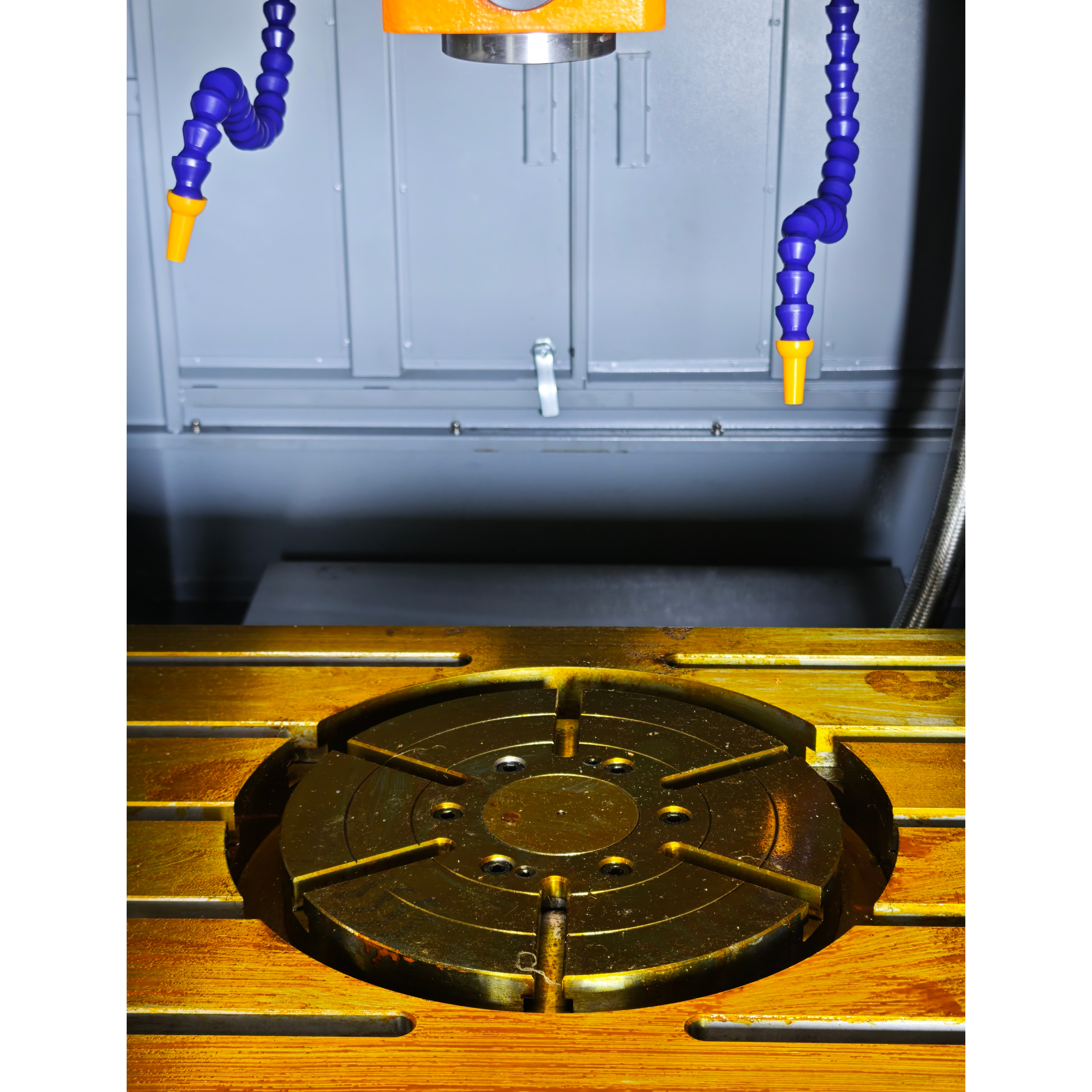

Turntable diameter mm 320
Longitudinal travel distance of the worktable mm 350
Horizontal movement distance of the worktable mm

150
Vertical and horizontal feed range of the worktable mm 0.01-1
Main motor power 千瓦 11
Machine size mm 2500*2100*2320
Machine weight KG 5200

BK7032 汉泰嘉联重型立式数控开槽机，带电机，用于金属铣削和齿轮切削，价格有竞争力

BK7032 汉泰嘉联重型立式数控开槽机，带电机，用于金属铣削和齿轮切削，价格有竞争力

BK7032 汉泰嘉联重型立式数控开槽机，带电机，用于金属铣削和齿轮切削，价格有竞争力
