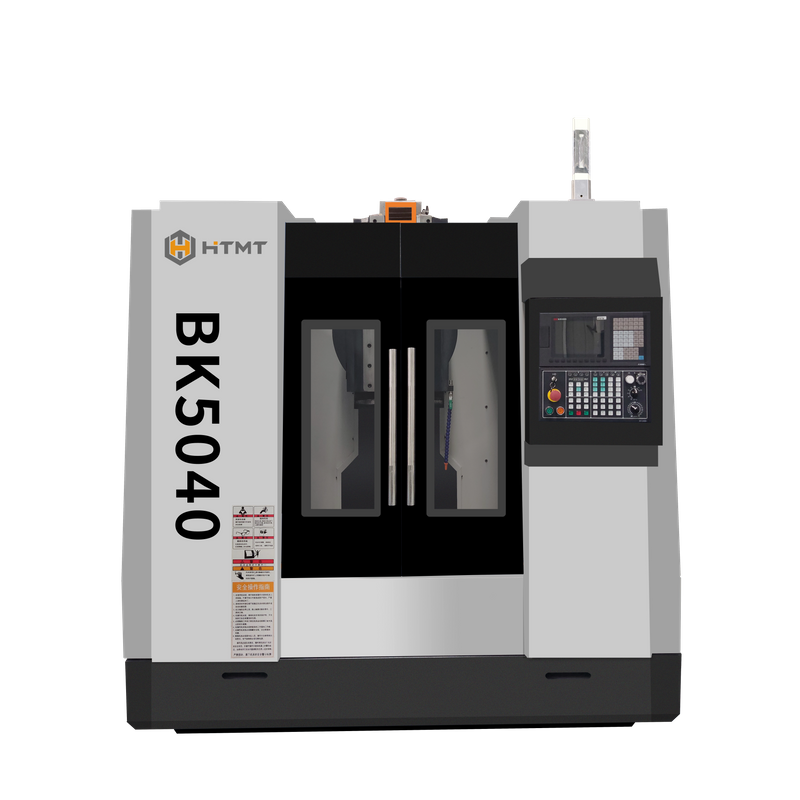

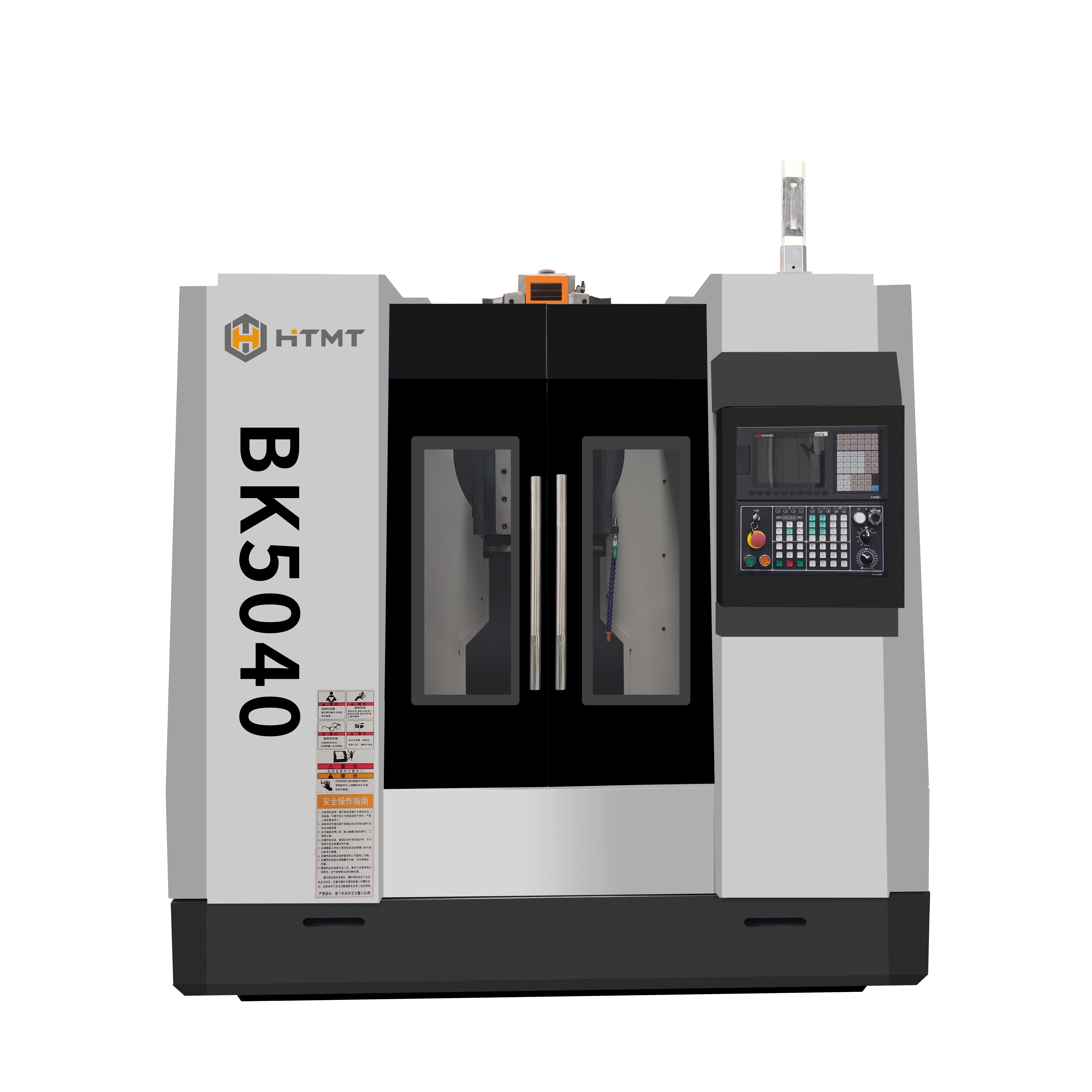

BK5040 CNC Slotting Machine

BK5040 CNC Slotting Machine is generally used to process keyway parts, single-key, double-key, multi-key, spline-type, and can also process inner and outer special-shaped planes and various internal and external tooth-shaped processing, especially for blind holes, which are irreplaceable by other machine tools.

The machine tool has high power, good rigidity, high efficiency, simple operation, long service life, and can be widely used in valves, impellers, machine tools and automobile manufacturing, various mechanical, electrical, aerospace and other industries. It is an ideal equipment for processing keyways of various materials.

Availability:

Quantity:



Inquire Add to Basket

Model:
BK5040
Brand:
HantaiJialink

Product Description

Main technical parameters	Specification	unit	BK5040
Maximum insertion length of sliding pillow	Ram maximum slotting length	mm	400
Sliding pillow adjustment stroke	Ram stroke adjustment	mm	300
Sliding pillows per minute exercise information	Ram movement times	N/min	20-70
Sliding pillow tilt	The slider is tilted.	°	±10°
Maximum cutting force	Maximum cutting force	n	12000
Tool holder diameter	Diameter of the knife handle	mm	⌀60
Workbench size	Work table size	mm	500X500
Workbench itinerary (X, Y)	Trael of table(X,Y)	mm	370X540
Distance from the axis of the blade support hole to the column forearm	The knife head suppoting hole axis to column forarm distance	mm	625
Distance from bottom end of carriage to work surface	The distance from the bottom end of the slide frame to the worktable surface	mm	660
X-direction motor torque	X to the motor torque	NM	10
Y-direction motor torque	Y to the motor torque	NM	15
Move quickly	Fast moving	X(m/min) Y(m/min)	5 5
Ball screw X	Ball screw X		FFZD4010-5/P4
Ball screw Y	Ball screw Y		FFZD4010-5/P4
Main motor power	The main motor power	kw	5.5
Machine tool weight	Machine weight	kg	5600
Machine tool size	Machine tool dimensions	mm	2650X2100X2600
Packaging size	Packaging size	mm	2800X2300X2800

Download parameters

BK5040.pdf
