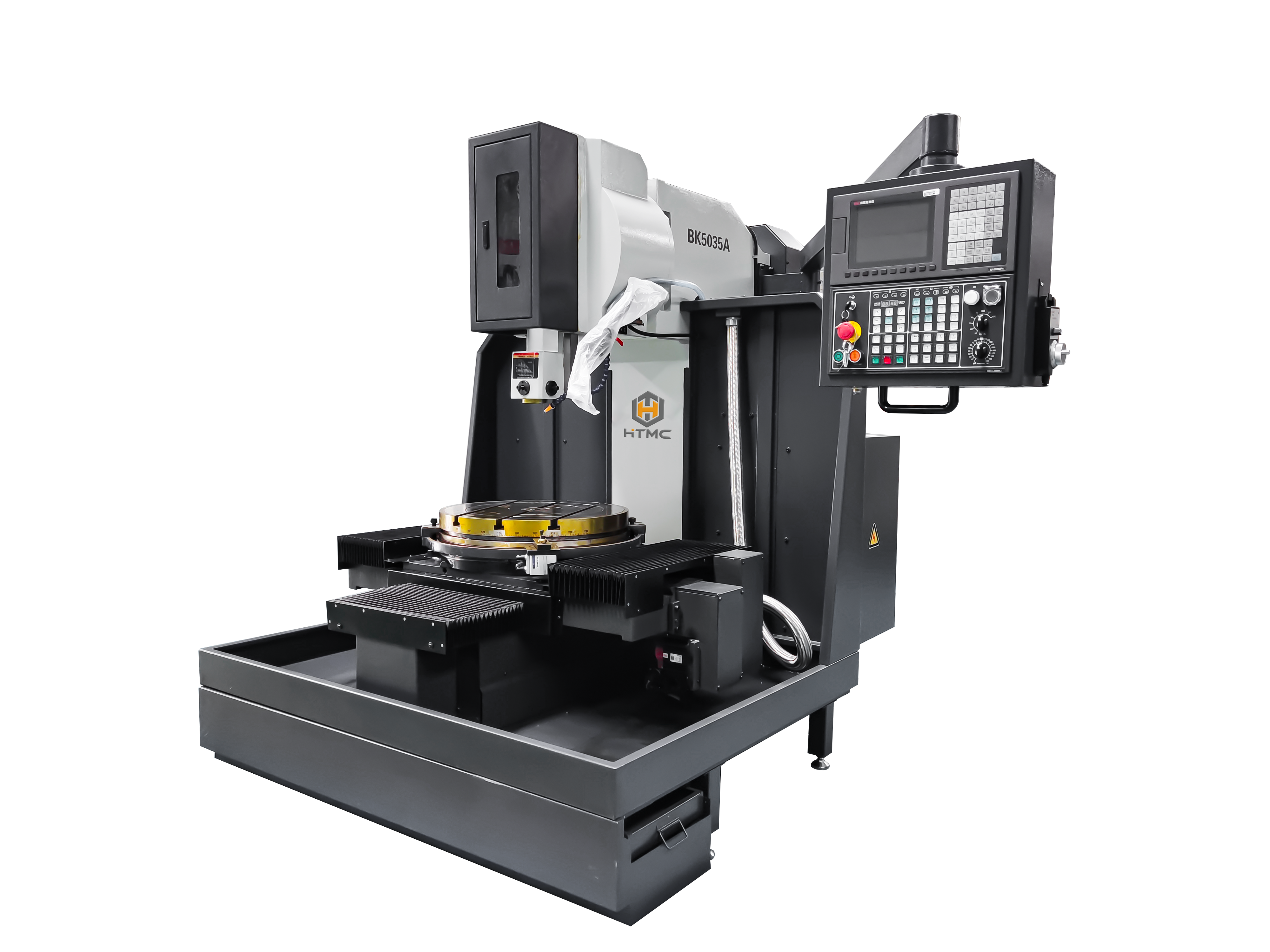

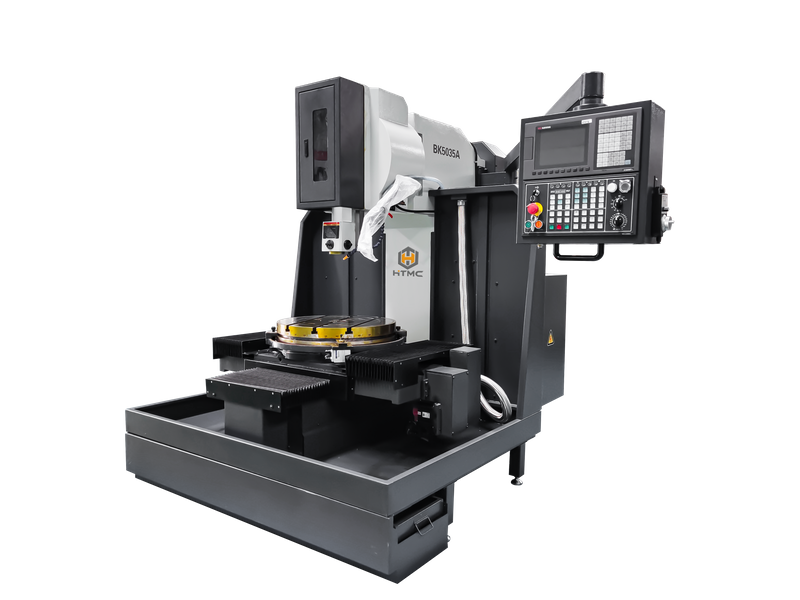

BK5035A CNC Slotting Machine

Availability:

Quantity:



Inquire Add to Basket

Model:
BK5035A
Brand:
HantaiJialink

Product Description

PROJECT	UNIT	PARAMETERS
The maximum insertion length of the ram	mm	350
The ram adjusts the travel	mm	300
The number of times the pillow moves	n/min	0-90
Workbench size	mm	Φ630
Workbench stroke (X/Y)	mm	350*400
Diameter of the knife handle	mm	Φ40
The distance from the axis of the tool head support hole to the forearm of the column	mm	625
The distance from the sliding frame section to the worktable surface	mm	580
Torque of the rotary table motor	NM	15
Center T-slot width of the table	mm	318160
X-axis motor torque Y-axis motor torque	NM	7.7
Fast movement (X) Fast movement (Y)	m/min	12
Ball screw(X)		FFZD3206
Ball screw(Y)		FFZD4006
Main motor power	Kw	3.7
Weight (Net weight/gross weight)	Kg	3600/3750
Machine tool dimensions	mm	260020002500

Parameter download

BK5035A.pdf
