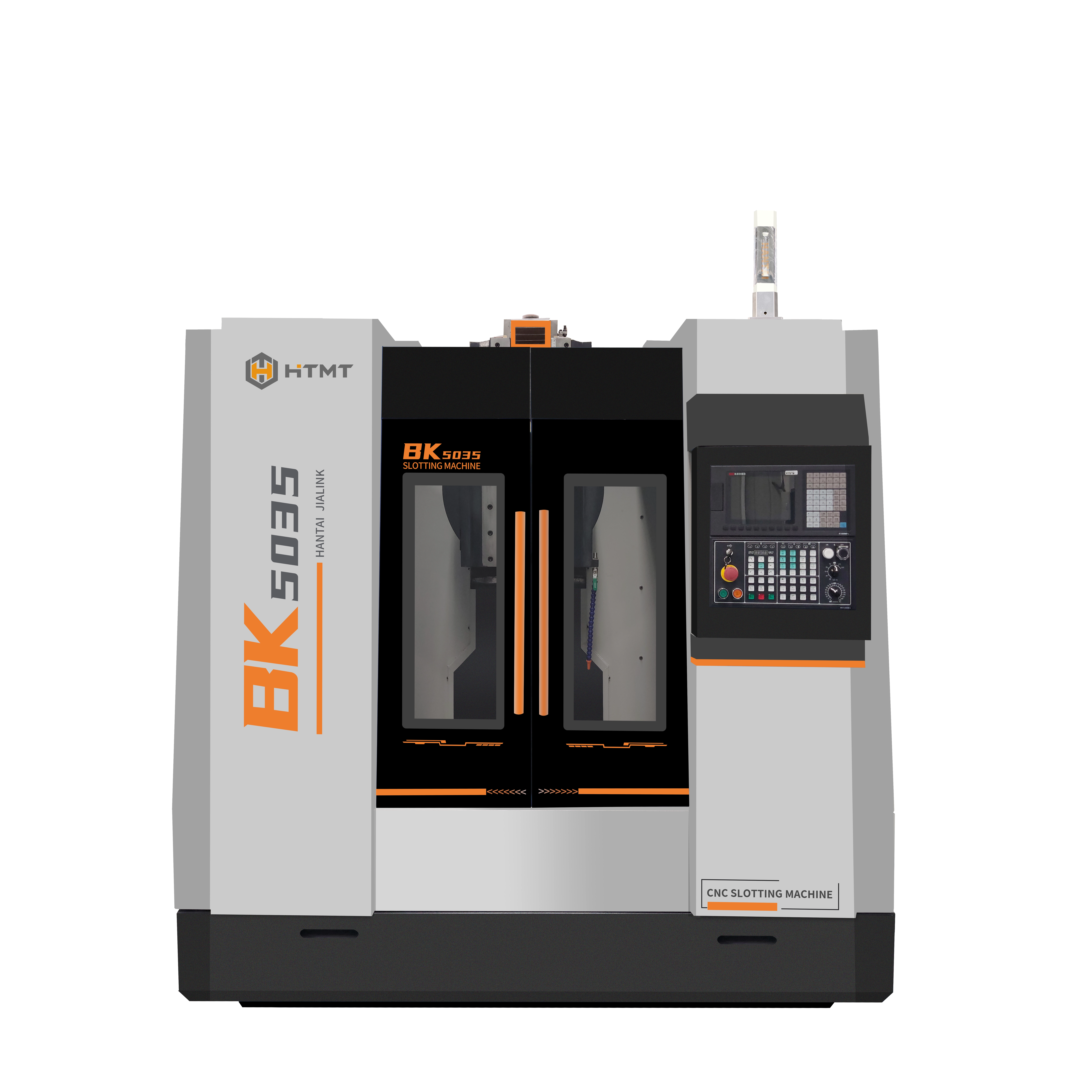

BK5035 CNC Slotting Machine

BK5035 CNC Slotting Machine is generally used for processing keyway parts and double-key splines. It can also process inner and outer special-shaped planes and various internal and external tooth processing, especially for blind holes, which are irreplaceable by other machine tools.

The machine tool has high power, good rigidity, high efficiency, simple operation, long service life, and can be widely used in valves, impellers, machine tools and automobile manufacturing, various mechanical, electrical, aerospace and other industries. It is an ideal equipment for processing keyways of various materials.

Availability:

Quantity:



Inquire Add to Basket

Model:
BK5035
Brand:
HantaiJialink

Product Description

Main technical parameters	Specification	unit	BK5035
Maximum insertion length of sliding pillow	Ram maximum slotting length	mm	350
Sliding pillow adjustment stroke	Ram stroke adjustment	mm	300
Sliding pillows per minute exercise information	Ram movement times	N/min	0-100
Workbench size	Work table size	mm	750X510
Workbench itinerary (X, Y)	Trael of table(X,Y)	mm	320X400
Distance from the axis of the blade support hole to the column forearm	The knife head suppoting hole axis to column forarm distance	mm	625
Distance from bottom end of carriage to work surface	The distance from the bottom end of the slide frame to the worktable surface	mm	680(Standard) 830(Raise)
X-direction motor torque	X to the motor torque	NM	10
Y-direction motor torque	Y to the motor torque	NM	15
Move quickly	Fast moving	X(m/min) Y(m/min)	5 5
Ball screw X	Ball screw X		FFZD4010-3/P4
Ball screw Y	Ball screw Y		FFZD4010-3/P4
Main motor power	The main motor power	kw	5.5
Machine tool weight	Machine weight	kg	4750

Download parameters

BK5035.pdf
