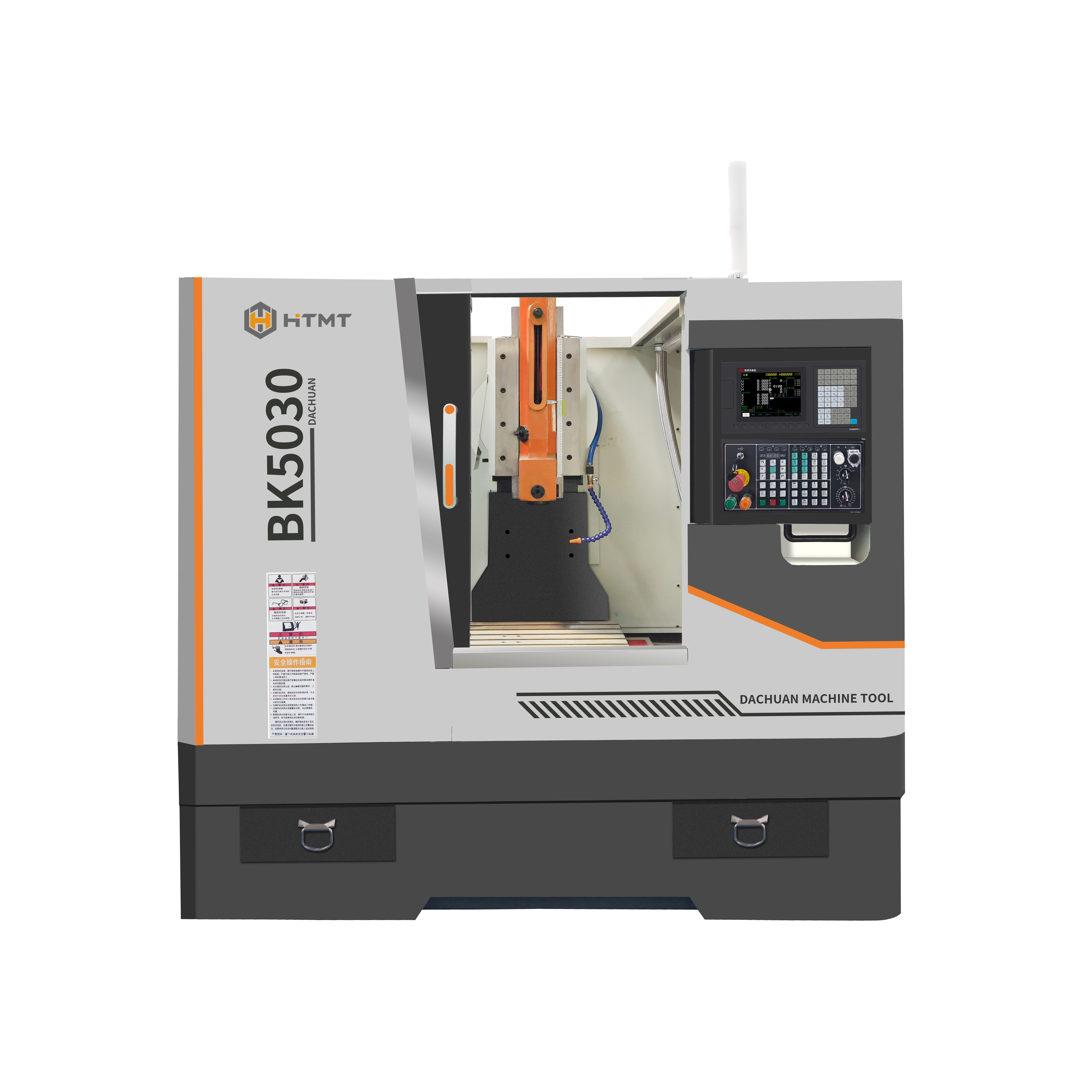

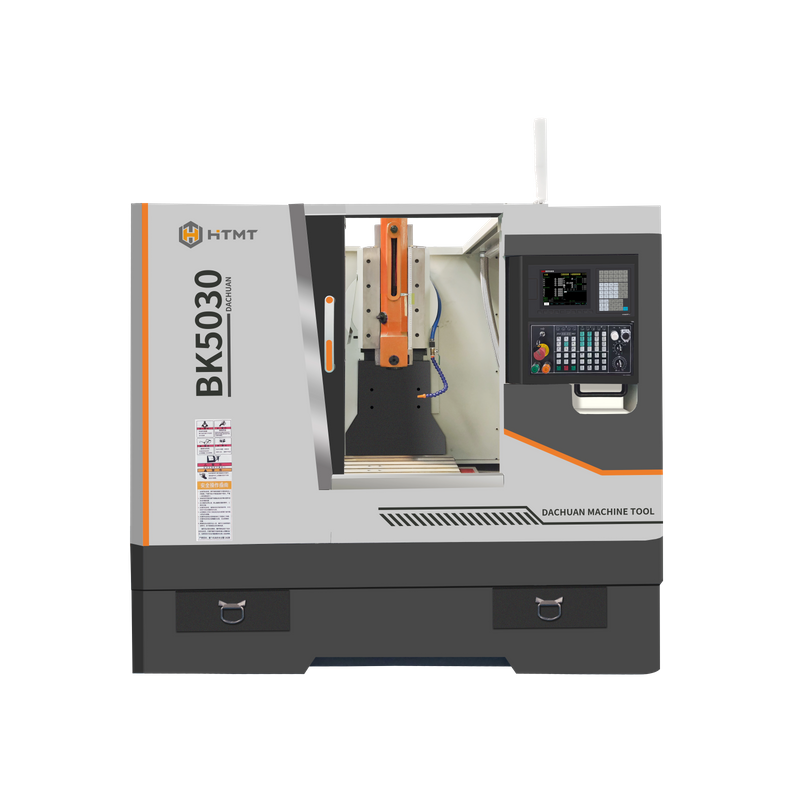

BK5030 CNC Slotting Machine

BK5030 CNC Slotting Machine is a new CNC insertion bed independently developed and designed by our company with patented property rights. It is generally used to process keyway parts, single-key, double-key, multi-key, splined, and can also process inner and external special-shaped planes and various internal and external toothed processing, especially for blind holes, which are irreplaceable by other machine tools.

Availability:

Quantity:



Inquire Add to Basket

Model:
BK5030
Brand:
HantaiJialink

Product Description

Main technical parameters	Specification	unit	BK5030
Maximum insertion length of sliding pillow	Ram maximum slotting length	mm	300
Sliding pillow adjustment stroke	Ram stroke adjustment	mm	260
Sliding pillows per minute exercise information	Ram movement times	N/min	30-120
Workbench size	Work table size	mm	550X410
Workbench itinerary (X, Y)	Trael of table(X,Y)	mm	250X300
Distance from the axis of the blade support hole to the column forearm	The knife head suppoting hole axis to column forarm distance	mm	485
Distance from bottom end of carriage to work surface	The distance from the bottom end of the slide frame to the worktable surface	mm	540(Standard) 690(Raise)
X-direction motor torque	X to the motor torque	NM	6
Y-direction motor torque	Y to the motor torque	NM	6
Move quickly	Fast moving	X(m/min) Y(m/min)	5 5
Ball screw X	Ball screw X		FFZD3205-3/P4
Ball screw Y	Ball screw Y		FFZD3205-3/P4
Main motor power	The main motor power	kw	3.7
Machine tool weight	Machine weight	kg	2650

Download parameters

BK5030.pdf
