BF5013 New Product Launch Article

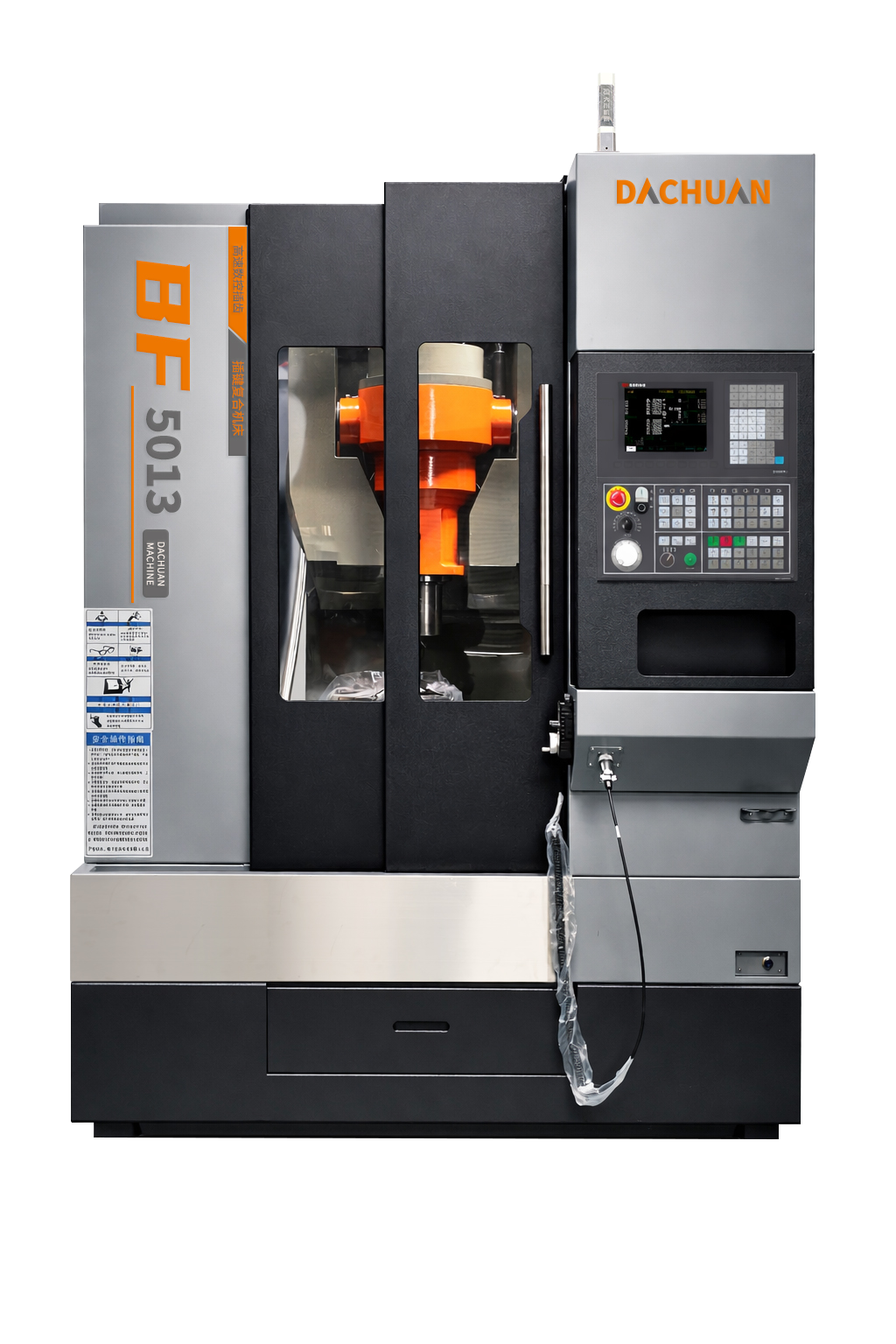

Shandong Hantai JIalink International Trade is thrilled to announce the official upcoming launch of our newly developed patent-pending machine, the BF5013 CNC Tilting Gear BF5013 New Product Launch Article& Keyway Slotting Machine, marking a transformative upgrade in our precision machining solution portfolio. As a specialized "Specialized, Refined, Unique and Innovative" enterprise with over 20 years of industry experience, we have long focused on the R&D and manufacturing of high-precision linear motion machine tools for internal hole and gear processing, earning a strong reputation in both domestic and global markets.

Unlike conventional single-function slotting machines, the BF5013 is an all-in-one solution capable of processing a wide range of workpieces. It can machine internal and external spur/helical cylindrical gears, multi-stage gears, and other gear-shaped parts via the generating method, while also supporting slotting for flat surfaces, formed surfaces, and keyways. This multi-functional design eliminates the need for multiple machine setups, drastically reducing processing time and improving overall production efficiency for our clients, especially those in high-volume manufacturing sectors.

Built with a high-strength cast iron base optimized through finite element analysis, the machine ensures exceptional rigidity and long-term stability. Its X/Y axes adopt direct-drive servo motors and pre-stretched ball screws, eliminating noise, backlash, and vibration caused by traditional belt/gear drives. The Y-axis features heavy-duty roller linear guides for ultra-high rigidity and fast positioning, while the X-axis mountain-shaped guide rail enhances load distribution and wear resistance, ensuring sustained precision over years of operation. Notably, the tool head can rotate around the column's horizontal axis, enabling efficient helical gear machining, with stepless stroke speed adjustment up to 400 str/min and an automatic tool retraction mechanism to protect workpiece surfaces during processing.

With a maximum external gear processing diameter of 500mm and a maximum module of 8mm, the BF5013 caters to diverse processing demands across automotive parts, general machinery, mold, aerospace, and marine industries. Equipped with a reliable CNC control system featuring complete safety interlocks and fault diagnosis, it delivers user-friendly operation and consistent, high-precision results for both small-batch custom jobs and mass production.

Backed by our independent R&D center and industry-university-research cooperation partnerships, we not only deliver standardized high-quality machines but also offer customized solutions to meet unique client requirements. Our products have been exported to Southeast Asia, Africa, Europe, America and other regions, trusted by global customers for their reliability and performance. We welcome global partners to inquire about this innovative new machine and explore win-win cooperation.
